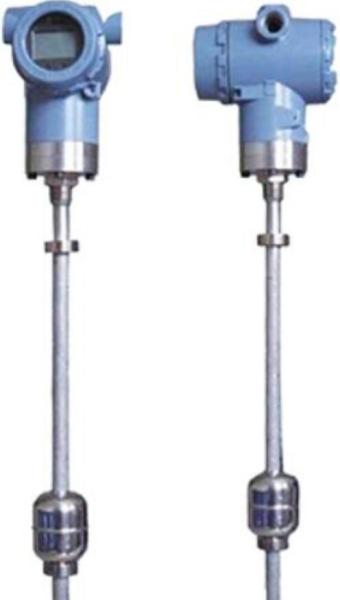

M27 Float Type SCZ21 Magnetostrictive Level Transmitter

SCZ21 Magnetostrictive Liquid Level Transmitter

Features

• Safe and reliable, stable operation
• Large measuring range and high precision
• Liquid level and boundary level measurement
• Anti-static, anti-surge, anti-interference and electromagnetic compatibility design

• The pressure-bearing pipe design of the high-pressure vessel does not require pressure relief for maintenance

• It can be used in dangerous places such as Viscous medium, corrosive, toxic, flammable and explosive

Specification

Range: 0-6000mm (hard rod)/0-25000mm (soft rod)
Accuracy: ±1mm
Resolution: 0.1mm
Environment temperature: -25℃-70℃
Liquid temperature: -25℃-150℃
Process interface: M27*2
Power supply: DC24V
Output signal: 4-20mA, two-wire system/three-wire
Temperature measurement: -25℃-70℃
Thermal error: ±0.5℃
Explosion-proof: ExiaIIBT4
Communication: RS-485, RS-232, Modbus, Hart and other protocols, can be equipped with CAN bus or customized.

Installation

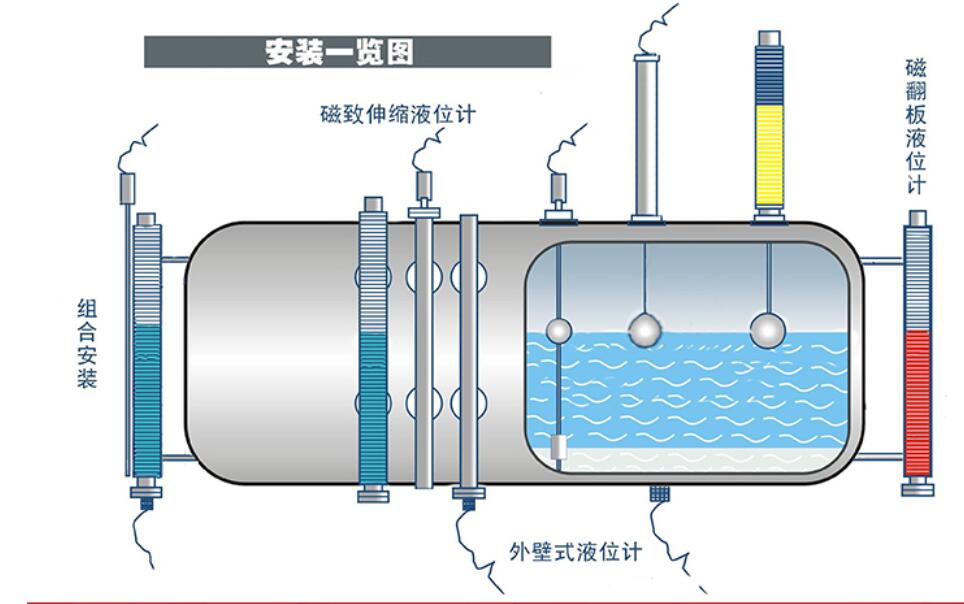

The magnetostrictive level transmitter has two installation forms to meet user needs, including: top-mounted and side-mounted.

Mounted Magnetostrictive liquid level meter Magnetostrictive level transmitter

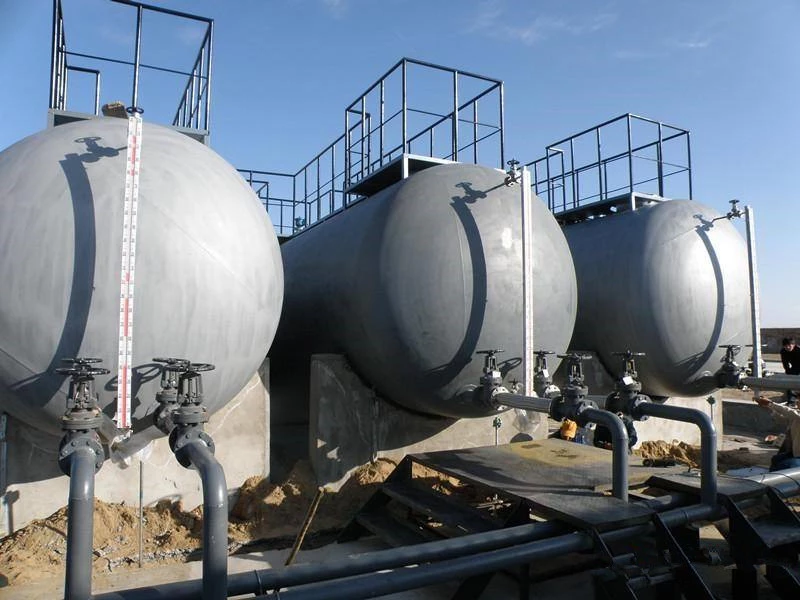

Applications Magnetostrictive liquid level meter Magnetostrictive level transmitter
