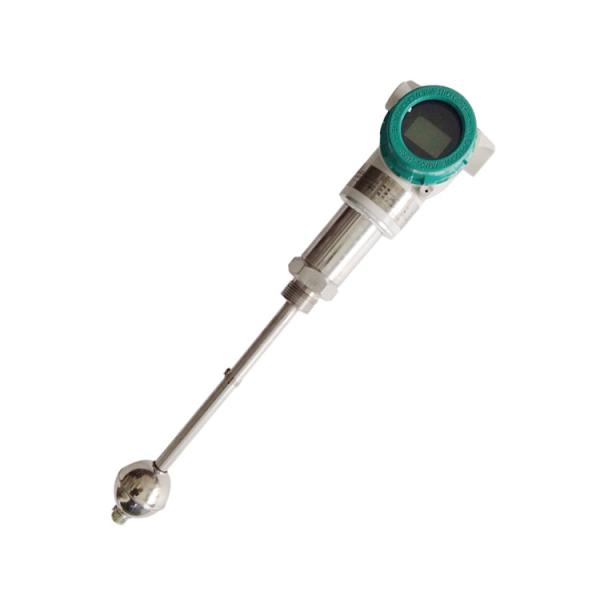

SCZ21 Magnetostrictive Liquid Level Transmitter
Features
• Safe and reliable, stable operation
• Large measuring range and high precision
• Liquid level and boundary level measurement
• Anti-static, anti-surge, anti-interference and electromagnetic compatibility design
• The pressure-bearing pipe design of the high-pressure vessel does not require pressure relief for maintenance
• It can be used in dangerous places such as Viscous medium, corrosive, toxic, flammable and explosive
Introduction
Level gauge the main components (body) in direct contact with the medium are made of stainless steel material or other special materials, indicating that components are not in contact with the media, and therefore containing flammable, explosive, toxic, corrosive media container use the gauge is safe and reliable.
Two-color (white vapor, liquid red) turned columns, flap display, indicating continuous visual eye-catching, no blind spots, in any case will not be a false level.
Less sealing surface, reducing static seal leakage points above 95%, and thus, to overcome the petroleum, chemical industry pressure vessel parts run,run, drip, leak and other weak links than the original plate level gauge.
Simple structure, easy installation and maintenance, large-scale, design pressure, long life, wide range of applications.
Magnetic float level gauge, with a level gauge can replace more than one glass plate liquid level gauge, and the installation extremely easy to use. Meanwhile, the use of plant development level remote transmitter, alarm and automatic control device, can be realized on the lower level alarm and control automation.
Specification
Range: 0-6000mm (hard rod)/0-25000mm (soft rod)
Accuracy: ±1mm
Resolution: 0.1mm
Environment temperature: -25℃-70℃
Liquid temperature: -25℃-150℃
Process interface: M27*2
Power supply: DC24V
Output signal: 4-20mA, two-wire system/three-wire
Temperature measurement: -25℃-70℃
Thermal error: ±0.5℃
Explosion-proof: ExiaIIBT4
Communication: RS-485, RS-232, Modbus, Hart and other protocols, can be equipped with CAN bus or customized.
Installation
The magnetostrictive level transmitter has two installation forms to meet user needs, including: top-mounted and side-mounted.
