24VDC RTD Infrared Temperature Transmitter Head Mount

Name: 24VDC RTD Infrared Temperature Transmitter Head Mount
Brand: Sier
Price: 1 USD

Brand Name : Sier

Model Number : ST04

Certification : CE,RoHS

Place of Origin : China

MOQ : 1 piece

Payment Terms : T/T, Western Union

Supply Ability : 5000 pieces each month

Delivery Time : 7days

Packaging Details : Carton

Accuracy : ≤0.1%F.S.

Operating temp. : -40ºC-85ºC

Cold junction compensation : Build-in

Input : thermocouples, RTD, resistance or voltage

Product name : Temperature Transmitter moduel

Power supply : 24VDC

Contact Now

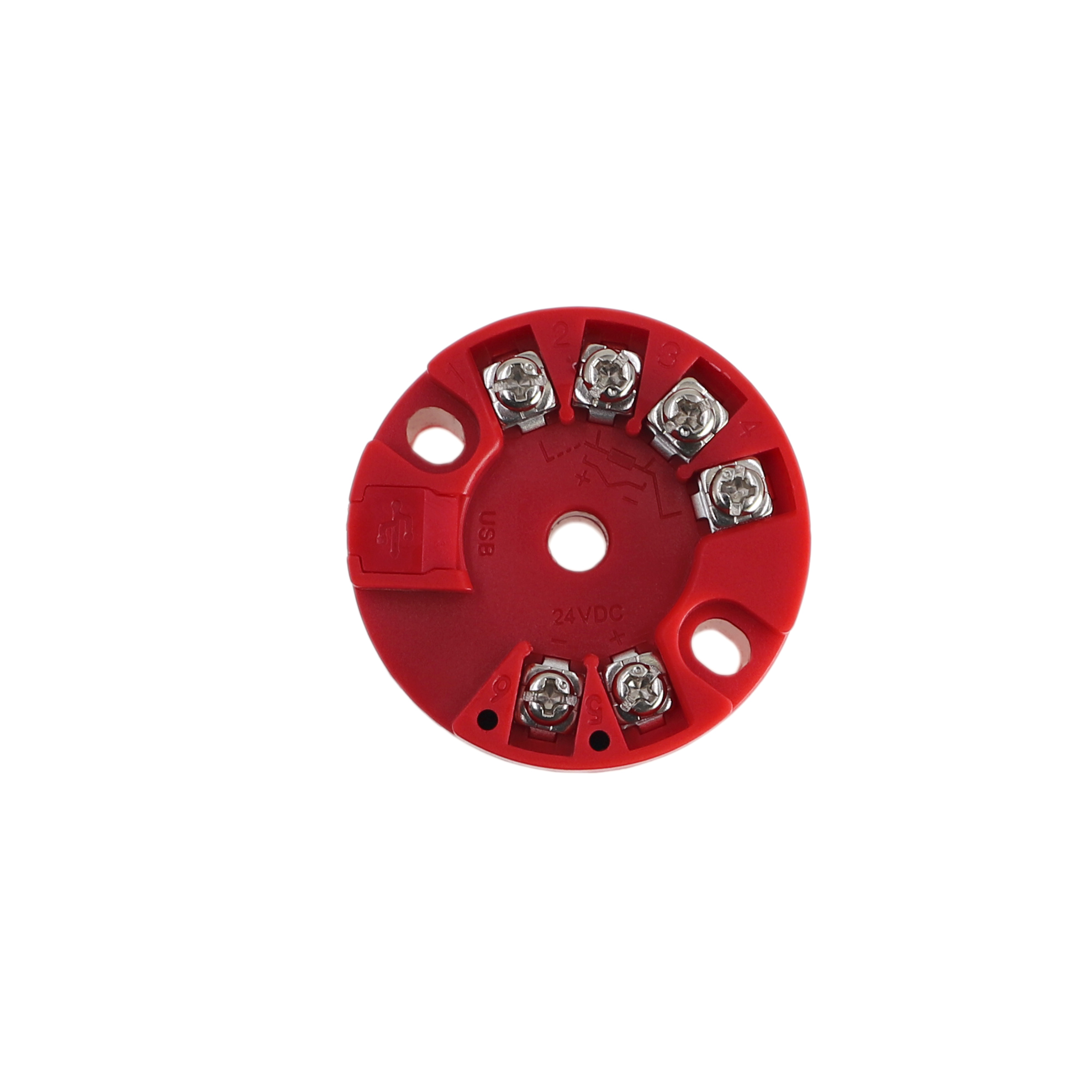

ST04 Temperature Transmitter

ST04 is a head mount temperature transmitter with a single input. The single input accepts thermocouples, RTD, resistance or voltage source. All inputs are linearized and converted in to an industrial standard 4 to 20 mA output for transmission to your system.

24VDC RTD Infrared Temperature Transmitter Head Mount

► Can convert all inputs to 4-20 mA

► Input: thermocouples, RTD, resistance or voltage

► Configuration directly via PDA or PC

► Build-in cold junction compensation

► Available with screw-in temperature probe

Outline dimension:

24VDC RTD Infrared Temperature Transmitter Head Mount

Function

* Install the driver

* Connect the transmitter with PC, open the software

* Choose the sensor type and temperature unit

* Set the temperature range accodingly

* Click ok or amend if need modify and the finish

* Other parameters are dufult and no need to set normally

24VDC RTD Infrared Temperature Transmitter Head Mount
